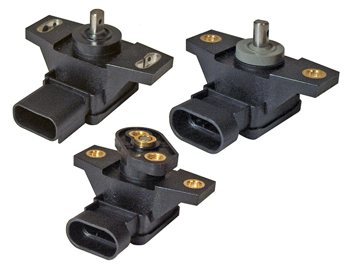

Honeywell Sensing and Control RPN Hall-Effect Rotary Position Sensors


Honeywell (NYSE: HON) introduces 17 new RPN Series Hall-Effect Rotary Position Sensors that simplify use by providing the inputs, outputs and voltage ranges needed for nearly any control system.

Eight operating ranges up to 360° give you greater control system accuracy by allowing you to select a range more closely suited to your application. Five supply voltage outputs (5 Vdc to 30 Vdc) and eight output configurations (mA or Vdc) improve compatibility with a variety of control systems. Linearity as low as ±0.35° provides you with increased measurement precision. This precision can be essential depending on the application. Two connector choices (AMP Superseal, Deutsch) satisfy any connection requirements. The RPN Series’ products also share the same footprint, eliminating special recalibrations and simplifying use.

The RPN Series sensors use solid state Hall-effect technology, providing non-contact operation, enhancing service life and reducing wear-out mechanisms. This Series uses a magnetically based, Hall-effect integrated circuit (IC) to sense rotary movement of the actuator shaft over an operating range. The IC, together with conditioning and protection circuitry and two permanent magnets, is sealed in a rugged package of IP67 or greater for durability in harsh environments. A dual output version is available for redundancy and backup.

This product introduction extends a robust portfolio of position sensors that are found in thousands of vehicles and equipment worldwide. Potential applications include position and movement detection of pedals, throttle, gear shift, levers, linkages suspension and hitches in trucks; off-road vehicles; industrial and construction vehicles and equipment; agricultural vehicles and equipment; and cranes.
