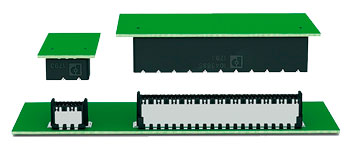

Phoenix Contact Robust FINEPITCH series board-to-board connectors benefit from reliable solutions for connecting PCBs within devices. The innovative ScaleX contact system provides vibration-proof board-to-board connections. Thanks to the flexible device design and numbers of positions from 12 to 80, you can utilize PCB space optimally. Stack heights from 6 mm to 12 mm are possible with various heights of female and male connectors.
FEATURES
-
- The FP 1.27 and FP 0.8 allow space saving board-to-board connections for signal and data transmission
- Up to 500 insertion and withdrawal cycles
- Test voltages up to 500 VAC at 1.4 A
- Tape-and-reel packaging allows easy integration into automated assembly processes
- Data rates of 3 Gbps for the FP 1.27 and 16 Gbps for the FP 0.8
- Double contact system enables vibration proof connections
- Agency approval in accordance with UL 1977
