The CF/CS 30 ATEX Series from Carlo Gavazzi introduces a high-reliability power relay solution for environments where explosive gases or combustible dust may be present. Certified to ATEX (TÜV) and NWFR (UL) standards, it meets the latest safety requirements for systems using low-GWP refrigerants and magnetic motor controllers in hazardous zones. Available in CF Fast-on and CS PCB terminal versions, the series supports AC and DC coils up to 30 A, features fire-resistant housing rated to GWT 750°C, and ensures dependable switching performance from –40°C to +85°C.
FEATURES:
- ATEX (TÜV) and NWFR (UL) certified for hazardous locations and flammable refrigerant systems.
- Ideal for HVACR, Oil & Gas, and Pumps & Compressor applications.
- Available in CF Fast-on and CS Soldering (PCB) terminal versions.
- Supports AC (24–277 VAC) and DC (6–48 VDC) coil voltages.
- 2×30 A contacts: DPDT or DPST configurations with 10×10⁶ mechanical endurance.
- GWT 750°C glow-wire–tested housing ensures superior fire resistance.
- Operating range –40°C to +85°C; surge voltage up to 10 kV.

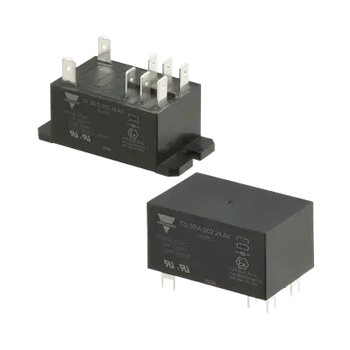

Carlo Gavazzi CF/CS 30 ATEX Series
