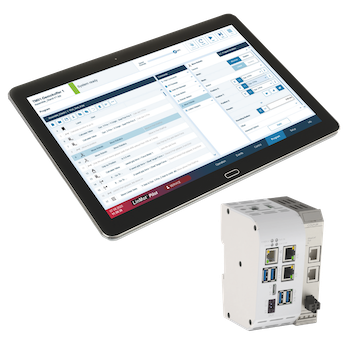

LinMot Pilot is an intuitive no-code control platform that enables rapid creation of sophisticated motion sequences entirely through a web browser. Predefined commands, teach-in functions, and application-specific wizards simplify tasks from pick-and-place to conveyor tracking and screwing—even for users without programming experience. The system runs on the TM01 Technology Module, a DIN-rail industrial controller supporting up to 8 axes, 2 ms cycle times, EtherCAT fieldbus, PROFINET/EtherNet/IP connections, and Industry 4.0 features such as OPC UA and WebVisu.
FEATURES:
- No-code configuration of multi-axis LinMot applications directly in a web browser.
- Predefined logic, motion, I/O, tracking, and process-specific wizards for fast setup.
- Supports up to 8 axes with 2 ms control cycle for demanding motion tasks.
- TM01 controller integrates EtherCAT Master, PROFINET/EtherNet/IP device, Modbus/TCP, and OPC UA.
- Built-in WebVisu and web interface for commissioning, diagnostics, and system HMI.
- 4-core 1.5 GHz processor, extensive Ethernet/USB interfaces, and DIN-rail industrial housing.
- Ideal for rapid prototyping, small automation cells, and reducing PLC programming effort.
