Weintek’s cMT3072XH3 elevates the 7-inch HMI class with a quad-core processor, 4 GB Flash, 1 GB RAM, and dual Ethernet ports for advanced data handling. As the first 7-inch model supporting the M02 WiFi expansion module, it simplifies wireless integration and retrofits. With OPC UA, MQTT cloud connectivity, SQL database support, and EasyBuilder Pro compatibility, it functions as a true on-site IIoT data hub. Rugged NEMA 4/IP66 protection and UL certification ensure dependable operation in demanding environments.
FEATURES:
- 7″ WVA display (1024 × 600) with resistive touch panel.
- Quad-core RISC processor with 4 GB Flash and 1 GB RAM.

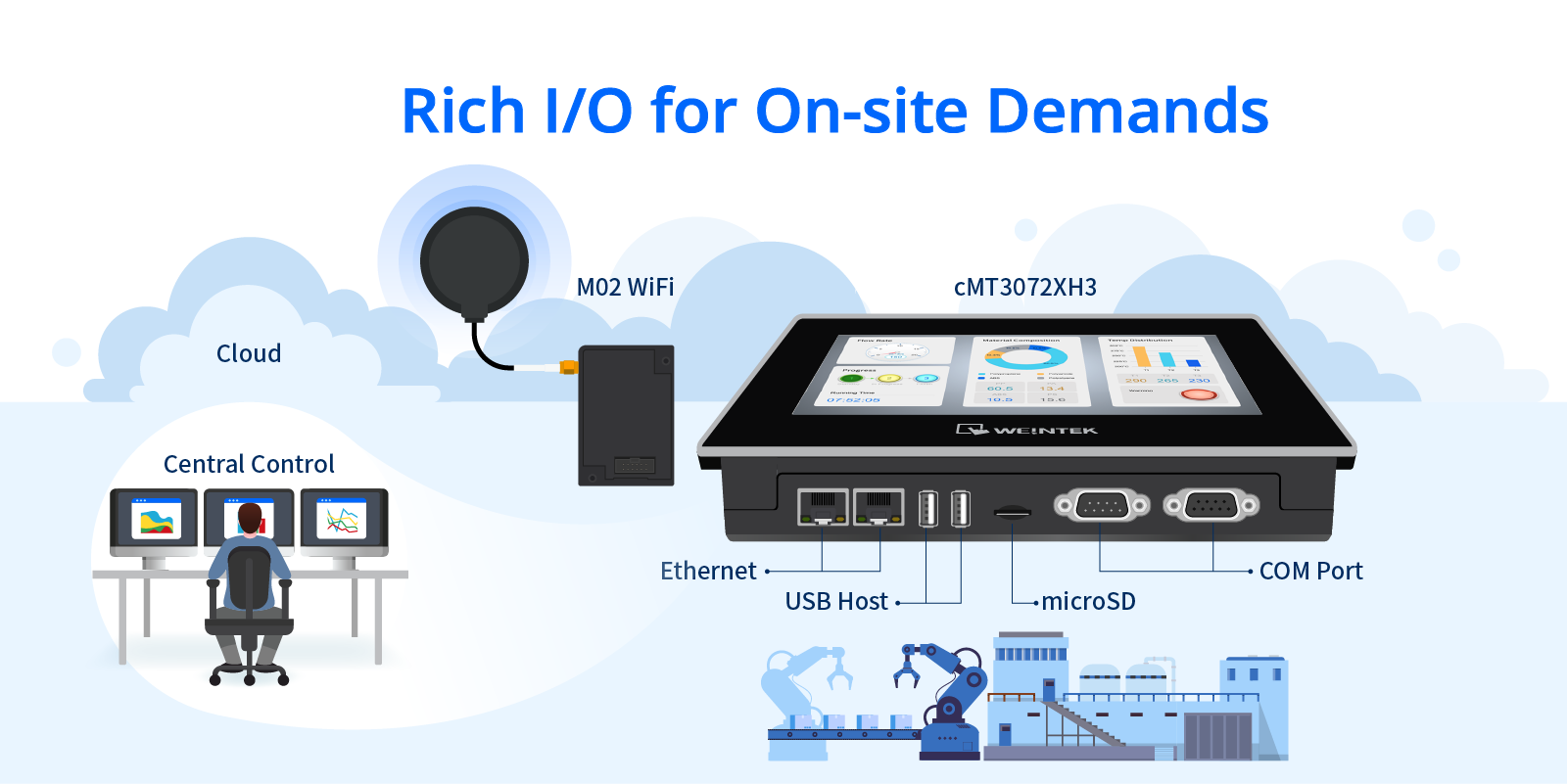

- Dual Ethernet ports, 3 COM ports, 2 USB Host ports, microSD expansion.
- Compatible with M02 WiFi Expansion Module for wireless communication.
- OPC UA Server, Modbus, MQTT, SQL database, and cloud integration support.
- Supports EasyBuilder Pro, Weincloud, and optional CODESYS runtime.
- UL Type 4X / NEMA 4 / IP66-rated front panel for industrial durability.
- Fan-less cooling system; operates up to 3,000 m altitude.
Weintek cMT3072XH3 7” cMT X Advanced HMI
